A-Walker:
a walker for the staircase

Statement: A Walker is an assistive mobility device that accommodates even terrains and staircases for seniors who are generally active but need occasional assistance and balance control. It can be used outdoor as a walking aid and on stairs as a walker-cane hybrid to provide firm support.

Main Features

Four aspects of aging are the major concerns of A Walker: mental security in seniors’ product environment, independence, safety, and social connectivity. Four corresponding components - telescoping legs, scissors crossbars, fold-up seat pads, and wheels with pressure brakes are designed to solve each problem stated above. In comparison with existing walkers in the market, A Walker bridges seniors’ mobility gap between indoor and outdoor space, making the impossible possible. Climbing stairs is no longer an intimidating challenge but a daily exercise. Only by building stronger bodies and more confident minds can seniors live a healthier life through the process of aging.

Research

The two most common types of walkers are the frame walkers and four-wheeled rollators, one provides maximum support indoor and the other one mobility outdoor. There is a blind spot in assistive mobility devices when it comes to the transitional space-staircases. With the decline of physical and cognitive ability, a lot of seniors are facing the issue of inaccessibility in public spaces due to the lack of transportation aids. My design opportunity is to make a transitional object to fully connect the journey of seniors.

Thesis Book32.jpg
Thesis Book90.jpg
Thesis Book91.jpg

Walking

Screen%20Shot%202017-01-18%20at%201.04_e

Standing

Screen%20Shot%202017-01-18%20at%201.03_e

Sitting


Lifting

Screen%20Shot%202017-01-18%20at%201.06_e
Screen%20Shot%202017-01-18%20at%201.06_e
Screen%20Shot%202017-01-18%20at%201.06_e
Screen%20Shot%202017-01-18%20at%201.05_e

Storyboarding

Walkers are simply not designed for the staircases, whether it is a frame walker or a rollator. With their various strengths and others’ assistance in different ways, people manage to either take their walkers up and down stairs or find a way to avoid the task. The former is not safe and could potentially lead to a fall. Even no accidents happen, carrying walkers in an unbalanced and awkward position is harmful to their bodies in the long term. Seeking for others’ help, on the other hand, is safer that however takes away their independence and mental freedom. Abraham illustrated here helps to explain different scenarios.

Thesis Book52.jpg
Thesis Book54.jpg
Thesis Book56.jpg
Thesis Book58.jpg

Ideation & Mockup

The concept development methodology is “top-down” and “bottom-up” simultaneously to fulfill the product’s utility and usability. “Top-down” method is used for the structural innovation that the walker’s leg length should be adjustable to adapt stairs. This main idea sets a perimeter, or constraints, on the overall form. Secondary research and collaboration with engineers are important for this part to ensure the product’s safety and performance. “Bottom-up” method on the complementary side, focuses on the generic components of a walker: handlebar, joint, seat pad, storage space, wheels, and so on. Since these are features to existing walkers, walker users know better than designers, which makes this part a collaboration with the users through primary researches.



Information and data collected from both primary and secondary research are taken into design considerations. For a user-centered project, user testing and feedback are essential to give the design not only utility but also usability. Following conventional design, development steps are explored linearly and circularly based on user feedback.

Thesis Book100.jpg
Thesis Book101.jpg
Thesis Book102.jpg
Thesis Book104.jpg
Thesis Book106.jpg
Thesis Book107.jpg
Thesis Book109.jpg
Thesis Book108.jpg
Thesis Book111.jpg
Thesis Book110.jpg
Thesis Book113.jpg
Thesis Book112.jpg
Thesis Book115.jpg
Thesis Book114.jpg
Thesis Book116.jpg
Thesis Book117.jpg
Thesis Book118.jpg
Thesis Book119.jpg

Going back and forth between scaled models and full-size mock-ups, the final form has landed on an A-shaped side profile. It offers ergonomic grips in a regular position and stair position on both sides; controls the telescoping through its natural curvature; minimizes material used and therefore reduces the weight to its essential; as well as aesthetically breaks the conventional medical signifiers.

Final Prototype

Thesis Book124.jpg
Thesis Book125.jpg
Thesis Book126.jpg
Thesis Book127.jpg
Thesis Book129.jpg
Thesis Book128.jpg

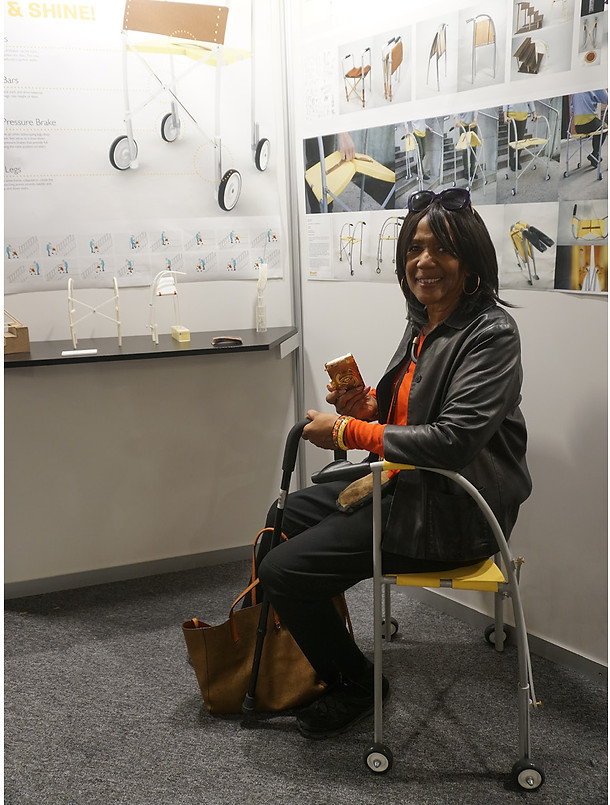

Thesis Book139.jpg

Abraham's Demonstration

Going Upwnstairs

Going Downstairs

Thesis Book146.jpg
Thesis Book147.jpg
Thesis Book136.jpg
